Key Specification

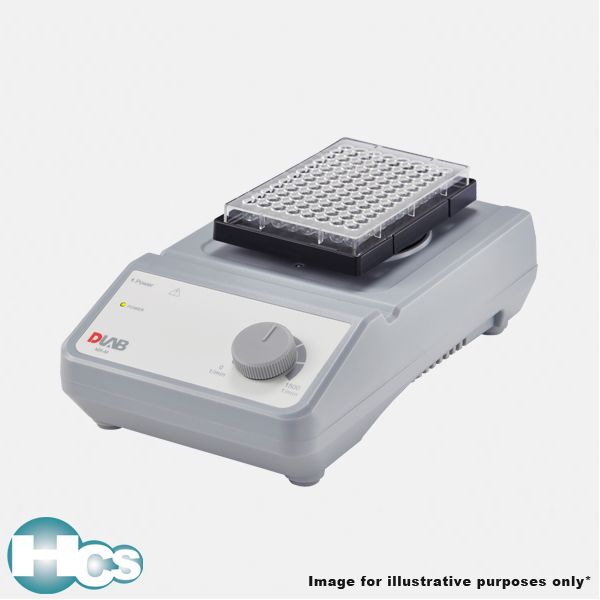

Model
MX-M
Mixing motion
Orbital
Orbital diameter
4.5mm
Maximum shaking weight
500g (with accessories)
Motor type
Brushless DC motor
Motor rating input
18W
Motor rating output
10W
Speed range
Single microplate: 0 – 1500rpm
Double microplate: 0 – 1000rpm
Speed display
Scale
Voltage
100-240V, 50/60Hz
Power
20W
Dimension
260mm x 150mm x 80mm
Weight
3 kg
IP protection class
IP21
Permissible ambient temperature
5~40°C
Permissible relative humidity
80%RH
Overhead Stirrer
Product No
Product Name
Description
8031202000
MX-M
Microplate Mixer inlcude Microplate clamp, 18900042(package contain the box)
Accessories of Vortex Mixer
Product No
Product Name
Description
18900067
PS1.1
Universal top plate(round), used with VT1.3.1–5
18900020
VT1.3.1
Tube adapter, for 48 holes test tubes, 6mm (0.5ml), used with VT 1.3/ VT 1.2/PS1.1
18900021
VT1.3.2
Tube adapter, for 18 holes test tubes, 10mm (1.5-2.0ml), used with VT 1.3/ VT 1.2/PS1.1
18900022
VT1.3.3
Tube adapter, for 12 holes test tubes, 12mm (2-7ml) , used with VT 1.3/ VT 1.2/PS1.1
18900023
VT1.3.4
Tube adapter, for 8 holes test tubes, 16mm (4-15ml), used with VT 1.3/ VT 1.2/PS1.1
18900024
VT1.3.5
Tube adapter, for 8 holes test tubes, 20mm (20ml), used with VT 1.3/ VT 1.2/PS1.1
18900042
PS1.2
Microplate clamp
18900079
MXM-116
Double microplate clamps
Description
Model
MX-M
Mixing motion
Orbital
Orbital diameter
4.5mm
Maximum shaking weight
500g (with accessories)
Motor type
Brushless DC motor
Motor rating input
18W
Motor rating output
10W
Speed range
Single microplate: 0 – 1500rpm
Double microplate: 0 – 1000rpm
Speed display
Scale
Voltage
100-240V, 50/60Hz
Power
20W
Dimension
260mm x 150mm x 80mm
Weight
3 kg
IP protection class
IP21
Permissible ambient temperature
5~40°C
Permissible relative humidity
80%RH
Overhead Stirrer
Product No
Product Name
Description
8031202000
MX-M
Microplate Mixer inlcude Microplate clamp, 18900042(package contain the box)
Accessories of Vortex Mixer
Product No
Product Name
Description
18900067
PS1.1
Universal top plate(round), used with VT1.3.1–5
18900020
VT1.3.1
Tube adapter, for 48 holes test tubes, 6mm (0.5ml), used with VT 1.3/ VT 1.2/PS1.1
18900021
VT1.3.2
Tube adapter, for 18 holes test tubes, 10mm (1.5-2.0ml), used with VT 1.3/ VT 1.2/PS1.1
18900022
VT1.3.3
Tube adapter, for 12 holes test tubes, 12mm (2-7ml) , used with VT 1.3/ VT 1.2/PS1.1
18900023
VT1.3.4
Tube adapter, for 8 holes test tubes, 16mm (4-15ml), used with VT 1.3/ VT 1.2/PS1.1
18900024
VT1.3.5
Tube adapter, for 8 holes test tubes, 20mm (20ml), used with VT 1.3/ VT 1.2/PS1.1
18900042
PS1.2
Microplate clamp
18900079
MXM-116
Double microplate clamps
