Universal Stirrer Guide, Cowie

Name: Universal Stirrer Guide, Cowie
SKU: 98911248
Availability: InStock

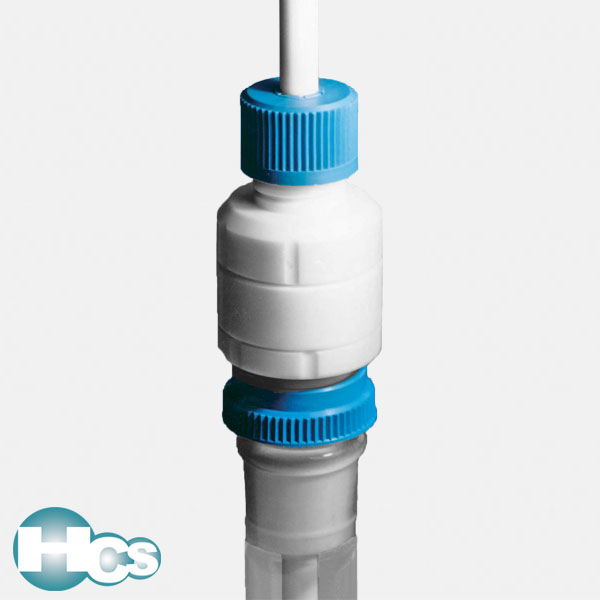

COWIE universal stirrer guides for use with standard taper ground glass joints can be used with PTFE shaft Stirrers and glass and metal shaft stirrers.

Unique features of the design are a permanently loaded Composite PTFE/PEEK Seal and a Glass Ball-Bearing for rigidity and smoothness of operation.

• Exceptional chemical resistance

• Anti-Whip and reduced vibration

• Vacuum (5mmHg) and pressure (3-5psi) performance

• No shedding

• Maximum recommended speeds;

continuous 500rpm, intermittent 800rpm

In Stock: Yes

Categories: Stirrers|Tags: Accessories, Cowie, laboratory supplies, Plasticware, PTFE, Universal stirrer guide|

Product No

Clear

Key Specification

Full Length ‘A’ Type Cone

Product No	Shaft Ø (mm)	‘A’ Cone	Height (mm) excl joint	Guide Ø (mm)
005.101.1.7	6	19/22	96	45
005.102.7	6	19/22	96	45
005.104.7	8	24/40	96	45
005.105.7	10	24/40	96	45
005.106.7	10	29/42	96	45
005.108.7	12	29/42	110	55
005.111.7	16	34/45	110	55
005.112.7	16	45/50	110	55

Medium Length ‘B’ Type Cone

Product No	Shaft Ø (mm)	‘B’ Cone	Height (mm) excl. Joint	Guide Ø (mm)
005.201.7	6	19/26	96	45
005.202.7	6	24/29	96	45
005.203.7	8	19/26	96	45
005.204.7	8	24/29	96	45
005.205.7	10	24/29	96	45
005.206.7	10	29/32	96	45
005.207.7	10	34/35	96	45
005.208.7	12	29/32	110	55
005.209.7	12	34/35	110	55
005.211.7	16	34/35	110	55
005.212.7	16	45/40	110	55

Description

Full Length ‘A’ Type Cone

Product No	Shaft Ø (mm)	‘A’ Cone	Height (mm) excl joint	Guide Ø (mm)
005.101.1.7	6	19/22	96	45
005.102.7	6	19/22	96	45
005.104.7	8	24/40	96	45
005.105.7	10	24/40	96	45
005.106.7	10	29/42	96	45
005.108.7	12	29/42	110	55
005.111.7	16	34/45	110	55
005.112.7	16	45/50	110	55

Medium Length ‘B’ Type Cone

Product No	Shaft Ø (mm)	‘B’ Cone	Height (mm) excl. Joint	Guide Ø (mm)
005.201.7	6	19/26	96	45
005.202.7	6	24/29	96	45
005.203.7	8	19/26	96	45
005.204.7	8	24/29	96	45
005.205.7	10	24/29	96	45
005.206.7	10	29/32	96	45
005.207.7	10	34/35	96	45
005.208.7	12	29/32	110	55
005.209.7	12	34/35	110	55
005.211.7	16	34/35	110	55
005.212.7	16	45/40	110	55
